In previous articles I explained how to use gitlab-ce (broken link) and gitlab-runner (broken link) through containers and connect them for continuous integration.

For docker to work through gitlab-runner you need to modify the runner's configuration, adding the name and the ip of the machine as shown below (file /etc/gitlab-runner/config.toml):

concurrent = 1

[[runners]]
  name = "Sample gitlab-ci cpp project"
  url = "http://12.168.0.60:9080t/ci"
  token = "5faac16d0aaf8f97fd66f5f586ed9f5f"
  executor = "docker"
  [runners.docker]
    tls_verify = false
    image = "debian"
    privileged = false
    disable_cache = false
    volumes = ["/cache"]
    extra_hosts = ["culata.dst:192.168.0.60"]
  [runners.cache]
    Insecure = false

After modifying the file, run:

gitlab-runner restart

In the runner article a project called sample-gitlabci-cpp-project is registered, taken from github.

It contains the following:

sample-gitlabci-cpp-project
├── helloworld.cpp
├── README.md
└── verify.sh

The helloworld.cpp file has the following:

// 'Hello World!' program

#include <iostream>

int main()
{
  std::cout << "Hello World!" << std::endl;
  return 0;
}

The verify.sh file is the one that drives the build:

#!/bin/bash

echo "Starting sample CI verification script"

echo "Trying to execute ./helloworld"

OUTPUT=`./helloworld`
RETVAL=$?

if [ $RETVAL -eq 0 ]; then
  echo "Retval is 0, OK"
else
  echo "Retval is not 0, FAIL"
  exit 1
fi

if [ "$OUTPUT" == "Hello World!" ]; then
  echo "Output is correct, OK"
else
  echo "Output is not right, FAIL"
  exit 1
fi

There is another hidden file named .gitlab-ci.yml, which contains the docker container build process with the execution of verify.sh:

# Specify the docker image to use (only used if using docker runners)
# See: http://doc.gitlab.com/ee/ci/docker/using_docker_images.html
image: debian

# Define commands that run before each job's script
before_script:
  - apt-get update
  - apt-get install -y gcc g++

# Try to compile our sample hello world app
compile:
  script:
  # Compile our app
  - g++ helloworld.cpp -o helloworld
  # Verify that our compiled app works properly with a custom "test" script
  - ./verify.sh
  # Save the compiled output from the above for downloading via GitLab and in Gitlab 8.6 to use in future build steps
  artifacts:
    paths:
    - helloworld

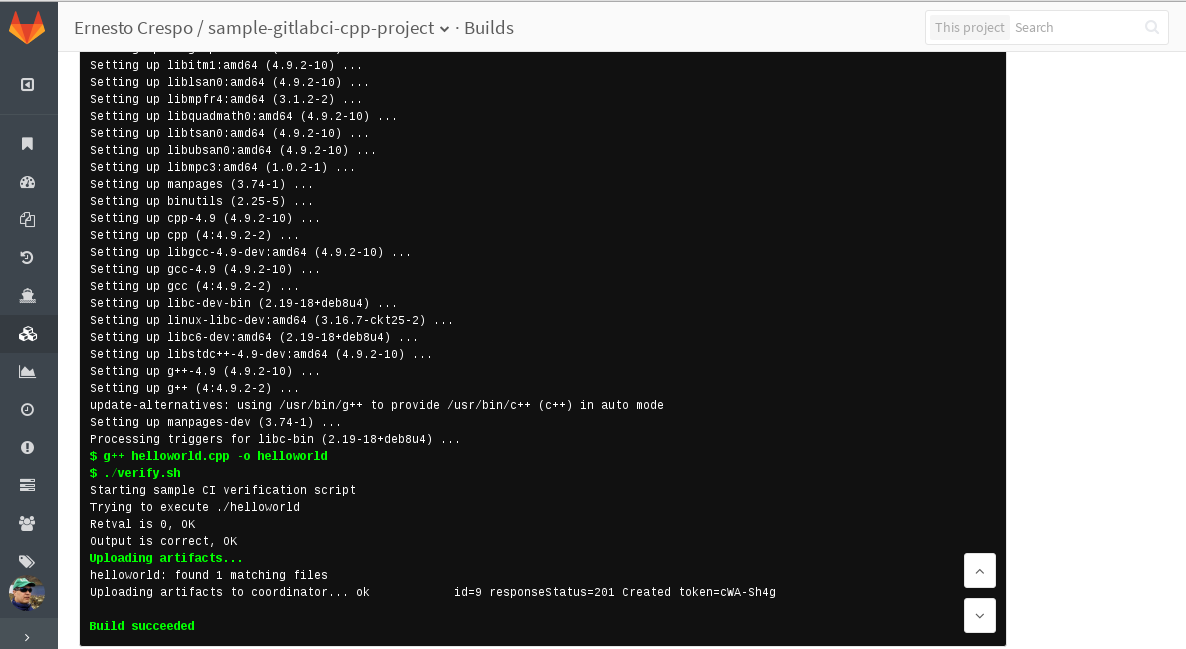

Now all that is left is to go to the build section of the project and run a build; the following figure shows the build running:

As the figure shows, the build went through without problems.

In upcoming articles its use with node.js and Django will be shown.
