Continuing with the articles on developing applications with python and gtk. Now I will join the articles related to matplotlib and gtk. I designed a dialog window with a plot in the center and 2 buttons: one to load the curve into the plot and the other to close the application. The figure shows the interface design in glade.

The code that creates the application is the following:

#!/usr/bin/env python
# -*- coding: utf-8 -*-
#Importar módulo gtk y matplotlib
import gtk
import matplotlib

matplotlib.use('GTK')
#Importar la clase figure, subplot, figurecanvasgtk, figurecanvas
from matplotlib.figure import Figure
from matplotlib.axes import Subplot
from matplotlib.backends.backend_gtk import FigureCanvasGTK, NavigationToolbar
from matplotlib.backends.backend_gtkagg import FigureCanvasGTKAgg as FigureCanvas
#Importar numpy
import numpy as np
#Definición de la clase
class App:
    def __init__(self):
        #Manejo del archivo glade por medio de gtkbuilder
        self.glade_file = "ej10.ui"
        self.glade = gtk.Builder()
        self.glade.add_from_file(self.glade_file)
        # cargar los widgets de la interfaz
        self.window = self.glade.get_object('dialog1')
        self.button1 = self.glade.get_object('button1')
        self.button2 = self.glade.get_object('button2')
        #Título de la ventana de dialogos
        self.window.set_title("Ventana de dialogo para demostrar uso de matplotlib")
        #Tamaño de la ventana de dialogos
        self.window.set_default_size(600, 400)
        #Asociación de los eventos con los widgets
        self.window.connect("destroy",self.on_dialog1_destroy)
        self.window.connect("close",self.on_dialog1_close)
        self.button1.connect ("clicked",self.on_button1_clicked)
        self.button2.connect ("clicked",self.on_button2_clicked)
        #Definición del widget que manejará la gráfica
        self.figura = Figure(figsize=(10, 8), dpi=100)
        self.ax = self.figura.add_subplot(111)
        self.ax.set_xlabel("Eje X")
        self.ax.set_ylabel("Eje Y")
        self.ax.set_title('Grafica')
        self.ax.grid(True)
        self.canvas = FigureCanvasGTK(self.figura)
        self.canvas.show()
        #Agregar la gráfica a la caja vertical
        self.vbox1 = self.glade.get_object("vbox1")
        self.vbox1.pack_start(self.canvas, True, True)
        #Mostrar la ventana
        self.window.show_all()

    def on_dialog1_destroy(self,*args):
        #Cerrar la ventana de dialogo
        gtk.main_quit()

    def on_button1_clicked(self,*args):
        #Carga la curva en la gráfica
        #Se oculta el canvas creado al inicio
        self.canvas.hide()
        #Generación de los valores X y Y
        self.x = np.arange(0,2*np.pi, .01)
        self.y = np.sin(self.x**2)*np.exp(-self.x)
        #Dibuja la curva
        self.ax.plot(self.x, self.y)
        #Se agrega la curva al canvas
        self.canvas = FigureCanvas(self.figura)
        #Se muestra el canvas
        self.canvas.show()
        #Se agrega el canvas a la caja vertical
        self.vbox1.pack_start(self.canvas, True, True)


    def on_button2_clicked(self,*args):
        #Cerrar la ventana de dialogo
        gtk.main_quit()

    def on_dialog1_close(self,*args):
        #Cerrar la ventana de dialogo
        gtk.main_quit()

    def main(self):
        #Ejecutar la aplicación gráfica
        gtk.main()



if __name__ == "__main__":
    #Creación de la instancia y ejecución del método main
    app = App()
    app.main()

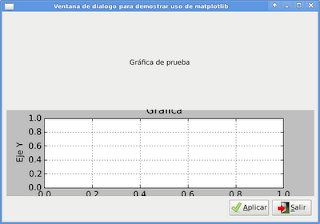

The following figure shows the application running:

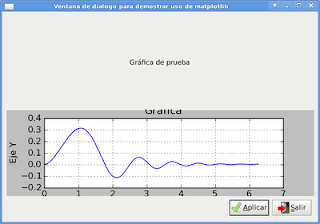

The following figure shows the application after pressing the apply button and loading the curve:

===
