The first article in the series explained the use of peepdf; this time pdfminer will be used.
At the following link you will find a tutorial on how to use it, or another one, and yet another.
The file to analyze will be the same as in the previous article, which is a file from the CENCOEX health sector page (broken link) .

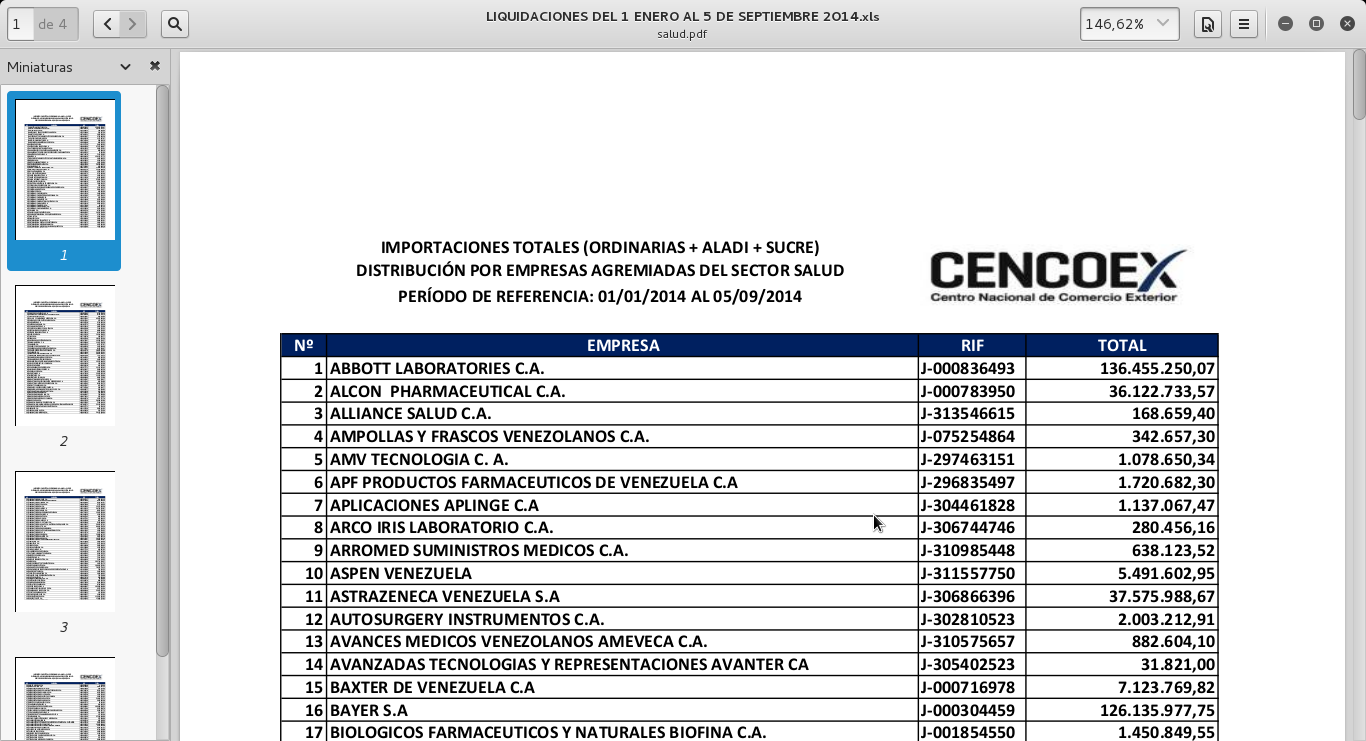

The following figure shows the salud.pdf file, which has 4 pages of a table with 4 columns: No., Company, RIF and total assigned in Bsf.
To install pypdf2 on Debian, use apt-get:
apt-get install pdfminer-data python-pdfminerFor pip it is as follows:
pip install pdfminerThe code of the script that will be used to extract the data is shown below:
#!/usr/bin/env python
# -*- coding: utf-8 -*-
#Se importa los modulos necesarios de pdfminer
from pdfminer.pdfparser import PDFParser
from pdfminer.pdfdocument import PDFDocument
from cStringIO import StringIO
from pdfminer.pdfinterp import PDFResourceManager, PDFPageInterpreter
from pdfminer.converter import TextConverter
from pdfminer.layout import LAParams
from pdfminer.pdfpage import PDFPage
def convertir(archivo, paginas=None):
#Si no se le pasa el numero de paginas se inicializa pagenums si no se le pasa
#a pagenums el numero de paginas.
if not paginas:
pagenums = set()
else:
pagenums = set(paginas)
#Se define la salida
output = StringIO()
#Se crea la instancia del manejador
manager = PDFResourceManager()
#se instancia el conversor de texto donde se le pasa el manejador y la salida
converter = TextConverter(manager, output, laparams=LAParams())
#Se instancia el interprete pasando el manejador y el conversor
interpreter = PDFPageInterpreter(manager, converter)
#Se abre el archivo de entrada
infile = file(archivo, 'rb')
#Se crea un ciclo pasando el archivo de entrada y el numero de paginas.
for page in PDFPage.get_pages(infile, pagenums):
#Se procesa cada pagina
interpreter.process_page(page)
#Se cierra el archivo de entrada
infile.close()
#Se cierra el conversor
converter.close()
#Se obtiene los valores de la salida en texto
texto = output.getvalue()
#Se cierra la salida
output.close
#Se devuelve el texto
return texto
if __name__ == "__main__":
print convertir("salud.pdf")
Running the script gives the following (the final output is shown below):
...
...
J-314931326
J-306044434
J-306652809
J-000273170
J-294885756
J-315368676
J-000276099
J-309260006
J-000068607
J-307695226
J-000886440
J-075558855
J-000298327
J-000440581
J-075265092
J-308718840
TOTAL
924.611,13
4.551.099,39
6.210.501,67
2.727.618,90
15.237.285,96
24.726.553,87
8.012.224,42
12.415.583,66
1.242.072,56
843.053,00
422.464,13
827.852,61
2.120.640,06
39.935.357,41
64.414.559,56
1.585.616,34
1.926.786,95
1.171.948,02
15.803.447,35
3.876.885,14
3.876.885,14
14.222.393,78
13.859.953,87
1.856.410,99
5.572.194,16
2.858.560,62
1.226.368,54
426.087,02
8.577.657,04
3.244.765,25
7.291.129,73
7.514.239,65
7.146.119,95
105.741.558,37
1.607.871,72
160.091.223,81
78.578.774,12
796.193,32
1.450.824,00
1.643.440,45
765.726,00
900.903,00
26.500,00
880.332,50
2.140.900,16
6.768.878,02
105.909.664,86
3.227.153,04
22.673.390,14
112.625,66
1.288.555,83
115.943.301,02
17.886.755,85
1.508.591,35
IMPORTACIONES TOTALES (ORDINARIAS + ALADI + SUCRE)
DISTRIBUCIÓN POR EMPRESAS AGREMIADAS DEL SECTOR SALUD
PERÍODO DE REFERENCIA: 01/01/2014 AL 05/09/2014
EMPRESA
Nº
163 RENTA MEDICA PC CA
164 REPRECLIN LAB C.A.
165 REPRESENTACIONES AITOR C.A.
166 REPRESENTACIONES DE LABORATORIO WEISS C.A.
167 REPRESENTACIONES LABIN-VE, S.A.
168 REPRESENTACIONES LUFRAN C.A.
169 REPRESENTACIONES MEDICAS YOMA CA
170 REPRESENTACIONES NOLVER C.A.
171 REPRESENTACIONES VARGAS C.A.
172 RESPITEC EQUIPOS MEDICOS C.A.
173 SANIFARMA PAÑALEX C.A
174 SANOFI-AVENTIS DE VENEZUELA S.A.
175 SEIJIRO YAZAWA IWAI C.A.
176 SERVIMEDIC SOLUCIONES CARDIOVASCULARES S.A.
177 SICA FARM DE VENEZUELA C.A
178 SINO PRODUCTS PAN AMERICAN SUPPLYC.A
179 SM PHARMA C.A.
180 SOLUCIONES ELECTRONICAS Y MEDICAS C.A.
181 SUMINISTROS BAIKOR CA
182 SUMINISTROS FOTOGRAFICOS Y MEDICOS SUFOMECA C.A. SUFOMECA
182 SUMINISTROS FOTOGRAFICOS Y MEDICOS SUFOMECA C.A. SUFOMECA
183 SUMINISTROS MEDICOS JAYOR C.A
184 SUMINISTROS MÉDICOS MULTIMÉDICA DMR C.A
185 SUMINISTROS RADI SURADI C.A.
186 SUPLIDORA HOSPIMED 2004 C.A
187 SURGILAP EQUIPOS C.A.
188 SYSMED EQUIPOS MEDICOS C.A.
189 TECNOLOGIA CLINICA CARDIOPULSO C.A.
190 TECNOLOGIA DOS C.A.
191 TECNOLOGIA MEDICA DEL CARIBE C.A.
192 TECNOMED J TRAPP C.A.
193 ULTRA CARE MEDICAL C.A.
194 WEST PHARMACEUTICAL SERVICES VENEZUELA C.A.
195 ZUOZ PHARMA S.A.
TOTAL GENERAL
RIF
J-306068848
J-002678143
J-308916064
J-000790078
J-003285536
J-001582738
J-001905545
J-003243906
J-002285540
J-300855775
J-002185449
J-303088481
J-000717184
J-306080740
J-306338438
J-303391923
J-070131390
J-303539661
J-312802316
J-001457810
J-001457810
J-003530255
J-303120784
J-003143324
J-300511529
J-302742463
J-308785539
J-306449191
J-304998074
J-001832726
J-000036071
J-310620440
J-002594160
J-002015080
TOTAL
4.310,96
5.676.457,12
205.152,00
6.221.734,67
4.270.788,35
1.954.333,42
1.996.335,62
51.816.733,75
5.653.885,98
58.431,62
410.002,29
103.980.350,21
3.252.208,70
2.382.957,73
212.924,97
171.935,94
27.281.496,00
572.896,00
492.918,00
3.033.050,09
3.033.050,09
12.005.888,05
1.313.993,48
9.298.817,31
4.714.939,88
1.085.603,86
1.190.975,38
831.945,94
271.105,08
2.048.621,93
1.900.646,66
1.151.336,80
2.011.181,88
22.706.399,72
2.237.473.782,31
NOTE: The figures for the ALADI and SUCRE import modalities are up to 08-31-2014
As you can see, the information comes out inconsistently; the text would need to be worked on to put it in order (for the next article).
Let's take the company number 163. It is the company: Renta Médica PC, C.A., RIF: J-306068848 and it was assigned 4.310,96 (as shown by the underlined and italicized fields of the result and the figure below).
Useful information is starting to come out. All that is left is to tidy it up a bit (next article), as well as review other tools. In the future the data will be stored in a sqlite or mongodb database to create a REST API with Python (upcoming articles), in order to show how institutions' information should be presented for Open Data (OpenData).
As you can see, extracting the data is not difficult; the hard part is that the file lacks the consistency needed to handle it easily.
